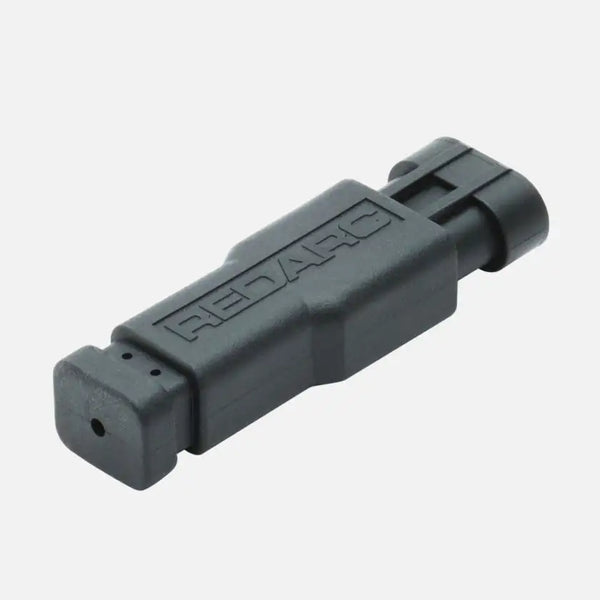

REDARC has released an Encapsulated Protection Device rated at 7 Amps for both 12 and 24 Volt applications. It is totally encapsulated with sealed connections. The EPDK-001 is designed to fit in the Trailer Stop Lamp feed to support the installation of Tow-Pro Electric Brake Controllers on vehicles where back-feed of 12 Volt during Tow-Pro Manual Override may interfere with vehicle systems.
When installed correctly, the EPDK-001 ensures proper Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used. It supports 12 Volt and 24 Volt applications capable of supporting a maximum continuous current of 7 Amps at a maximum ambient temperature of 185 degree Celsius.
- Part number: EPDK-001
- Rated at 7 Amps for 12 Volt and 24 Volt applications
- Totally encapsulated with sealed connections
- Prevents back-feed interference with vehicle systems
- Ensures correct Trailer braking and Stop Lamp operation
